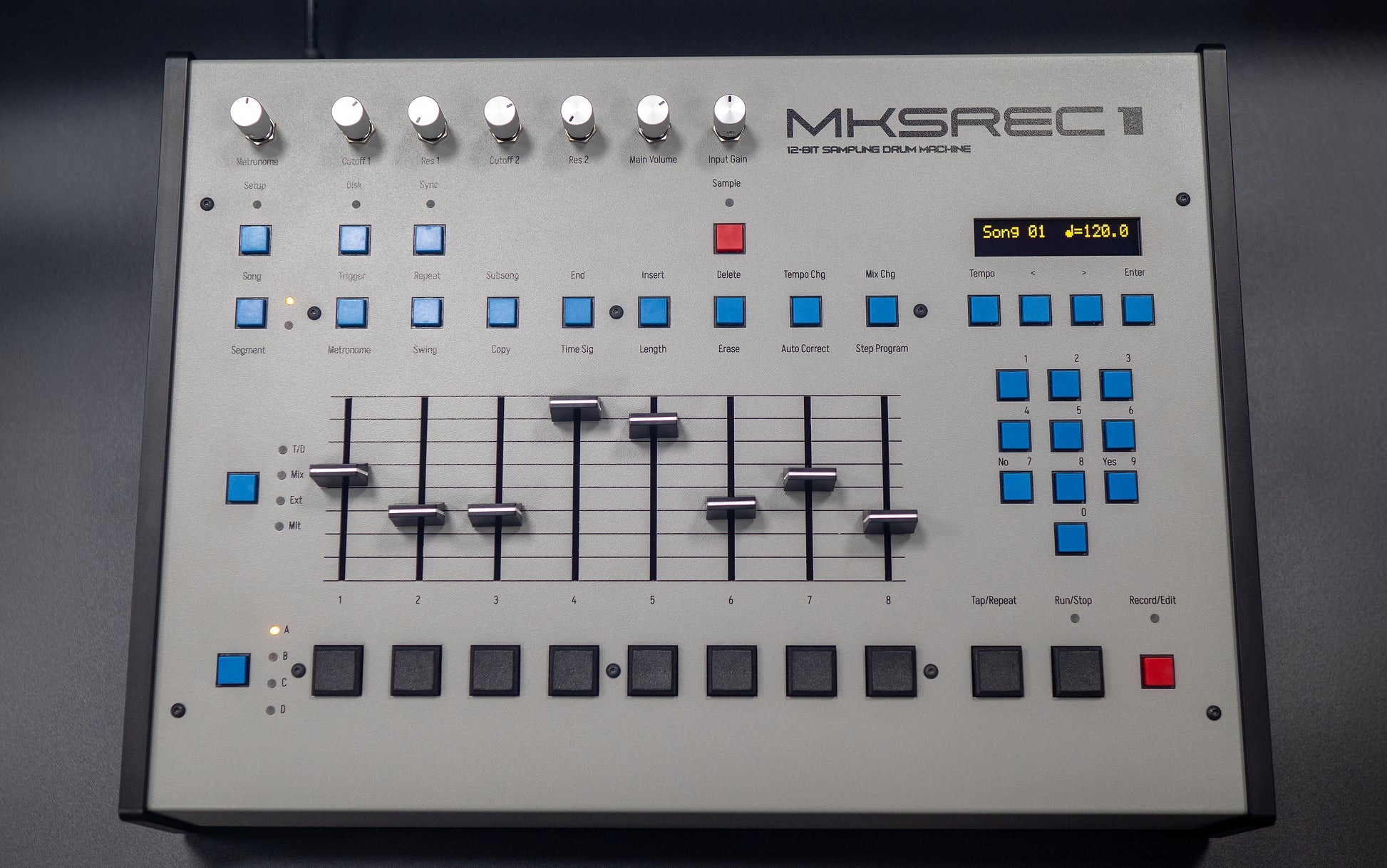

MKSREC 1

MKSREC 1 is a true 12-bit sampling drum machine with up to 16-voice polyphony and 832 seconds of sample time. Perfect for studio producers who demand classic sound combined with modern conveniences.

Features:

• 12 / 8-bit DAC 7541/24
• 12-bit SAR ADC (with sample input monitor)
• Supports 16-bit sample playback utilising multi-stage 12 / 8-bit DAC architecture
• 26.04 kHz sample rate
• Sequencer with 8th and 16th swing, step sequencer
• Up to 16-voice polyphony
• Switchable 2x analogue 2044 style (SSI2144) dynamic filters, 4x static analogue low pass filters
• Dual gain envelope, AHDSR (Attack, Hold, Decay, Sustain, Release) and clickless classic HD (Hold, Decay)
• Digital multi-mode (Low-pass, High-pass, Band-pass) filters (up to 2 filters per sample, one with AHDSR envelope)
• Dual pitch - classic and HQ (+/- 24 semitones range)
• Looping: Forward / Ping-pong / Free-running
• Sample trigger delay for fine-tuning the groove
• 64 sample slots (8 banks x 8 samples up to 13 seconds each)

• Reads .wav samples and OG disk images
• Steel and aluminium enclosure

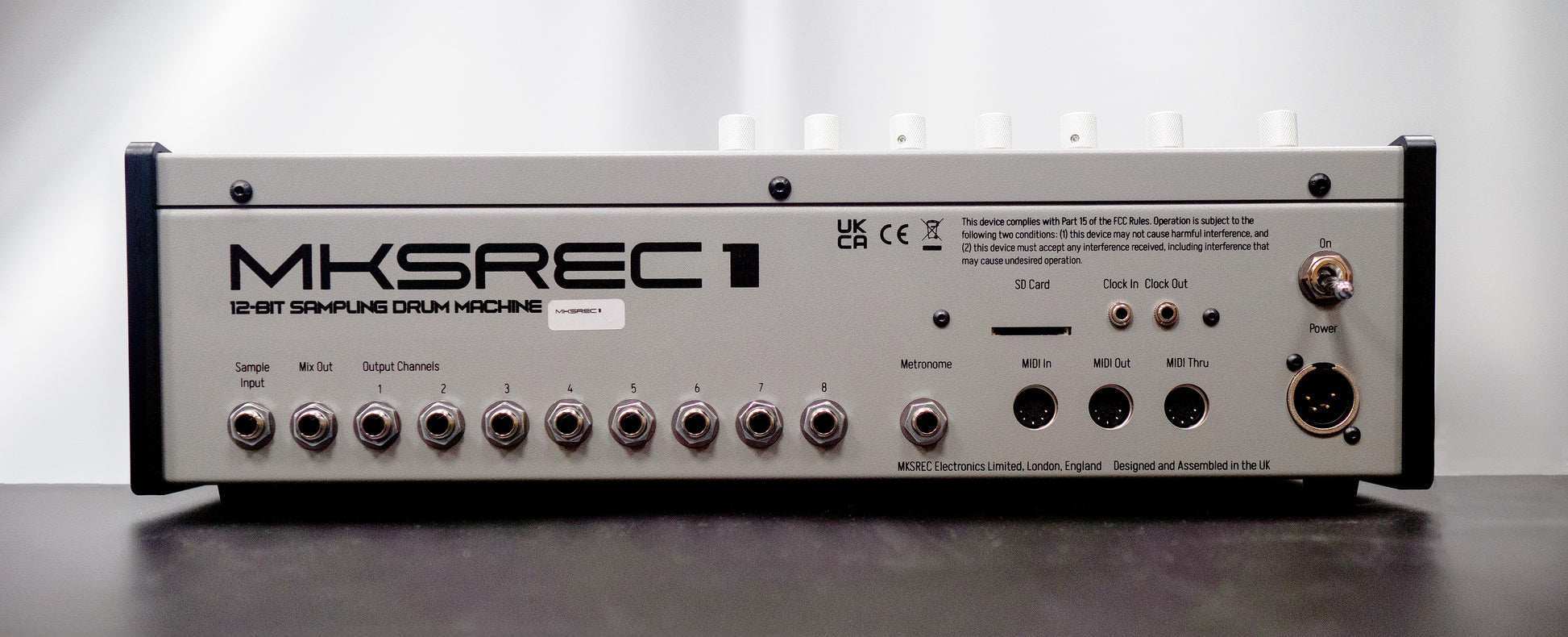

Connections:

• SD card slot
• 8x 1/4-inch TRS assignable balanced outputs
• 1x 1/4-inch TRS mono balanced mix output
• 1x 1/4-inch TS metronome output
• 1x 1/4-inch TS mono unbalanced sample input
• DIN MIDI In / Out / Thru
• 1x 1/8-inch Clock input
• 1x 1/8-inch Clock output
• Power adapter input

The sampler is intended to be used with a mixing console; there is no headphone output.

Dimensions:

• Width: ~43 cm (17 inches)
• Depth: ~30 cm (12 inches)
• Max Height (including pots): ~14 cm (5.5 inches)

Weight:

• 6.5 kg (14.3 lbs)

Contents:

• MKSREC 1 - 12-bit Sampling Drum Machine
• Power adapter
• Mains cable
• SD card

Please note: Due to the manual assembly process, the sampler may have minor cosmetic imperfections, such as small scratches, dents, or blemishes. These do not affect functionality and generally should not be noticeable during regular use. By purchasing, you accept these conditions. At this scale, these imperfections are unavoidable and part of the charm of limited manufacturing.
